Fall protection, confined-space visibility, and aerosol shielding in one rugged system. Engineered by Light Ring Inc. for the crews, ops managers, and safety directors managing fall risk and confined-space exposure on real municipal and utility jobsites.
Most manhole safety setups are passive. Cones mark a perimeter. A plastic cover ring adds a visual cue. A separate flashlight points a beam at the opening. Each piece does one job, and none of them physically stop a fall.
That gap matters. The majority of manhole near-misses don’t happen during confined-space entry. They happen during approach, setup, repositioning, and teardown, when crews are loading equipment past the opening, drivers aren’t slowing for the work zone, and the access point is the highest-consequence feature on a jobsite that was never designed for staging.
Real manhole safety equipment has to do three jobs at once: make the opening impossible to miss, physically guard the rim, and light the hazard so crews can see what they’re working around. The Light Ring closes that gap with a system built to handle all three from the moment it deploys.
The Light Ring closes the gap between visibility, structural protection, and aerosol containment in a single deployable system.

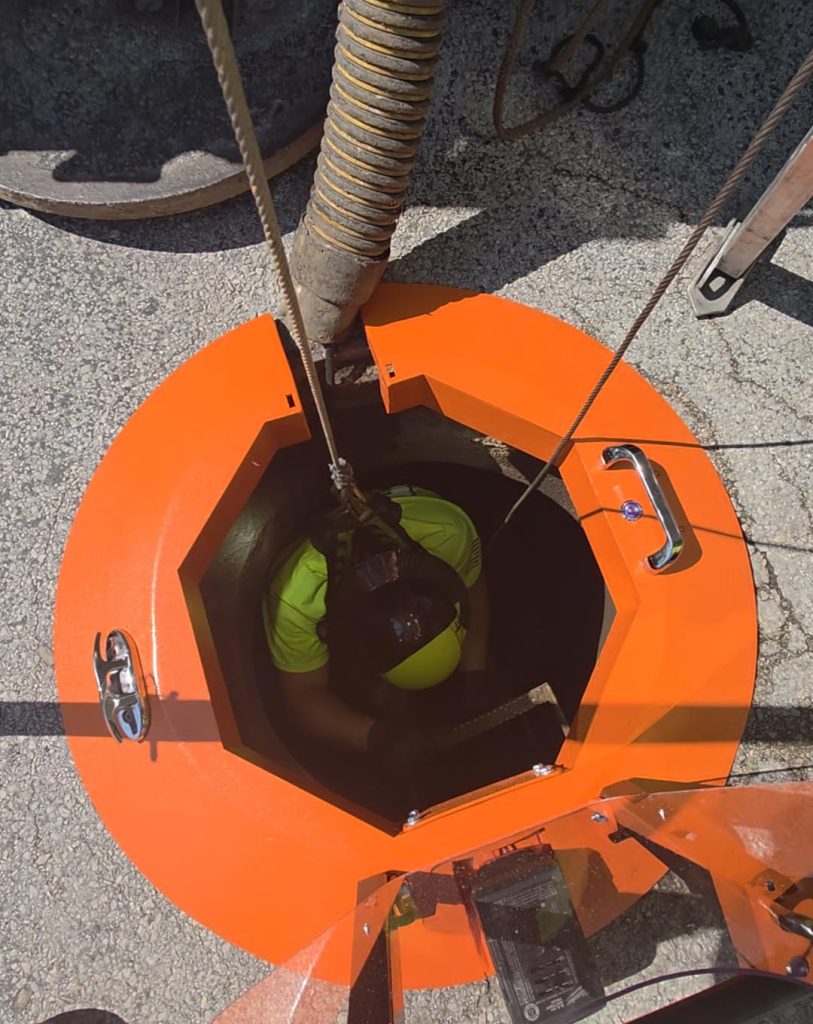

A passive cover ring marks the opening. The Light Ring physically guards it. The aluminum frame rests on the manhole rim and acts as a structural barrier that catches a misstep, an equipment shift, or a stumble before it becomes a fall to a lower level.
All-aluminum frame. Limited lifetime warranty on the structure.

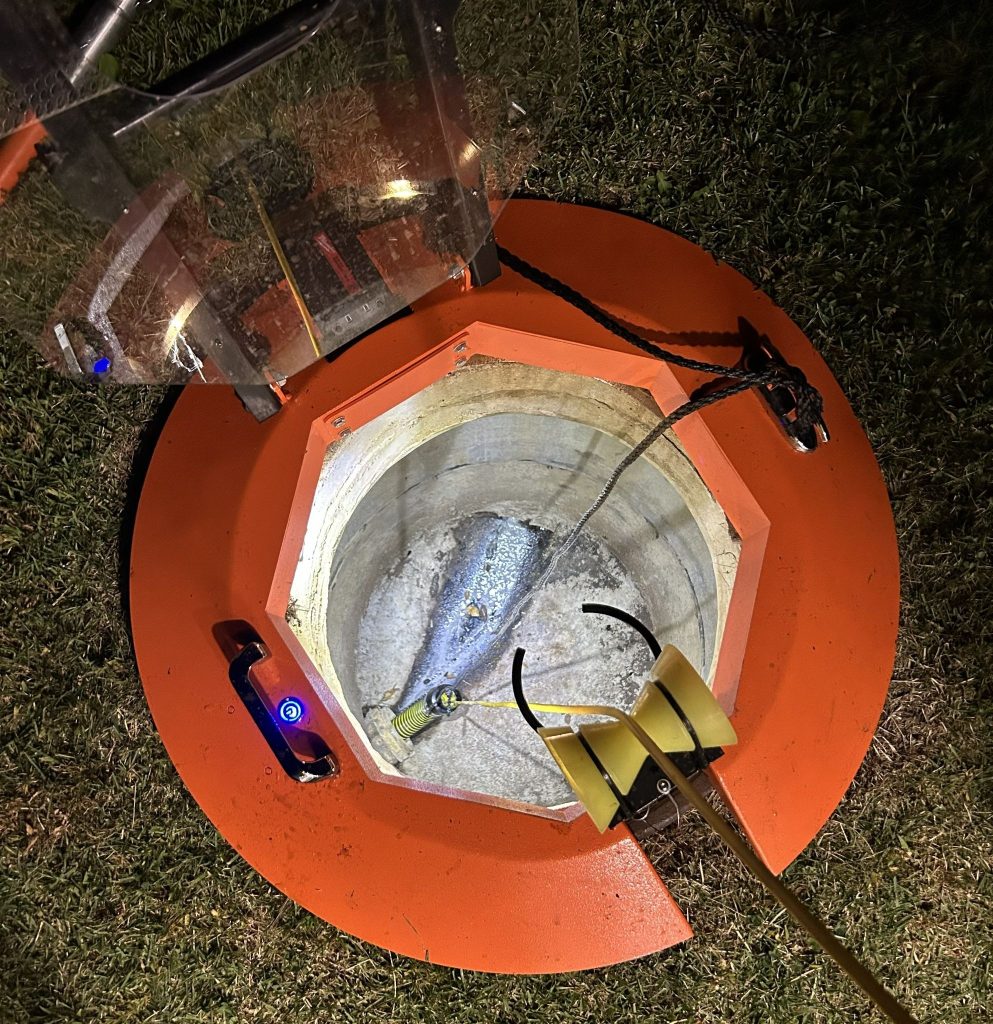

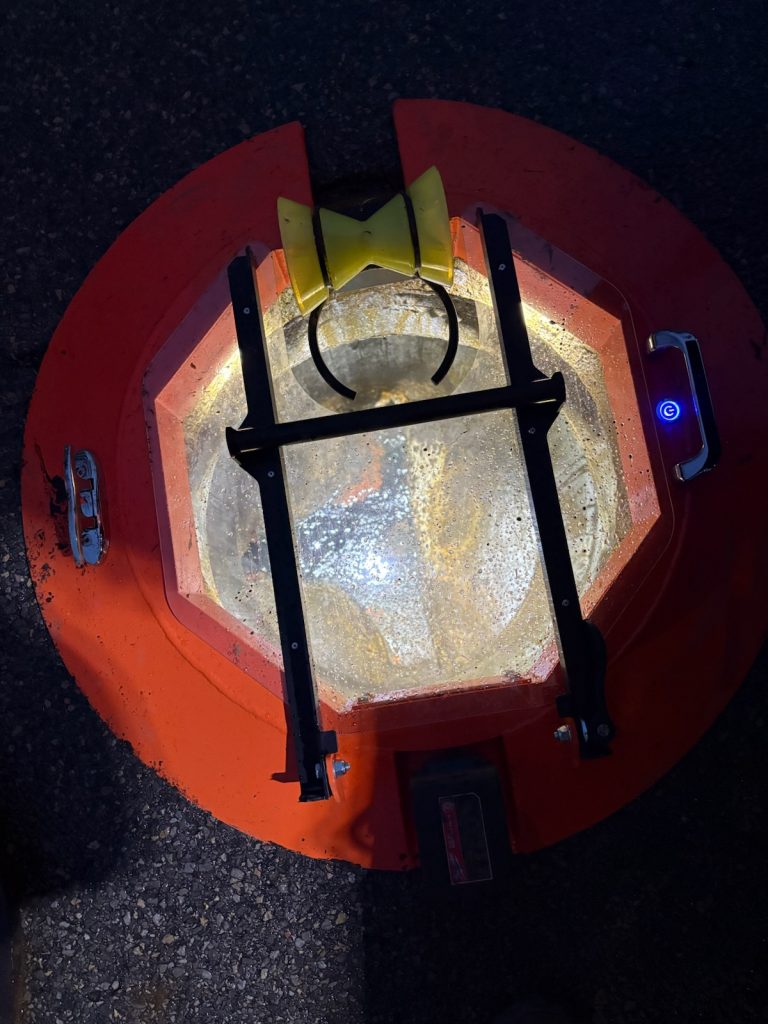

You can’t prevent a fall you can’t see coming. The Light Ring puts 6,000 lumens directly on the access point, so crews can read edge distance, ladder rungs, and equipment position through standing water, rain, or low ambient light.
Four 1,500-lumen LED modules. Marine-grade waterproof switch.
Jetting sends aerosolized water and debris straight up through the manhole. The flip-up plexiglass cover contains it at the source, reducing crew exposure, equipment fouling, and lens fogging on cold-weather CCTV runs.
Flip-up safety cover. Built-in cold-weather clarity for inspections.
The Light Ring is built to align with OSHA confined-space and fall-protection requirements as a single engineering control. One unit handles barrier, lighting, and aerosol containment, instead of three separate pieces your crew has to set up and document.
Fits 22 to 30 inch manholes. Integrated rope cleat for tiger-tail tie-off.
The case for the Light Ring is measurable. Four reasons it earns approval from the people accountable for crew safety, jobsite efficiency, and the budget that funds it.
One OSHA-recordable fall injury costs tens of thousands, and you can see for yourself the hidden costs on OSHA’s estimator. The Light Ring is a fixed line item that pays for itself the moment it prevents one.
Structural barrier, integrated lighting, and hazard marking lower exposure to citations, claims, and insurance loss runs. Every deployment applies the same engineering control, every time.
Operators push back on equipment that slows them down. The Light Ring deploys faster than separate setups and runs on batteries crews already carry. Once it’s in the truck, they keep reaching for it.
Cones, lights, and barriers each take time to set up. The Light Ring combines barrier, illumination, aerosol shielding, and hose roller into one piece of equipment. One setup, one item to track.
The Light Ring is named as the Preferred MPS in the industry-standard specification for open manhole protection and fall prevention. The spec defines what real manhole safety looks like, and the Light Ring is built to meet every performance requirement.
Light Ring earns its place on the truck because it does the job in real conditions, not just on paper. Hear from the Safety Directors and operators who deploy it.
If plug-in not available, pull specific reviews from trusted sources
Cones, lights, and barriers each take time to set up. The Light Ring combines barrier, illumination, aerosol shielding, and hose roller into one piece of equipment. One setup, one item to track.
Cones, lights, and barriers each take time to set up. The Light Ring combines barrier, illumination, aerosol shielding, and hose roller into one piece of equipment. One setup, one item to track.
One system. Three layers of protection. Built for the way your crew actually works.
Light Ring Inc. is built around the reality that municipal and utility budgets don’t always have a line item ready for new safety equipment. That’s why we work with crews on funding options before price becomes a reason to delay a purchase.
Three paths Light Ring Inc. offers:
Built to work together. Engineered for the same crews.
Engineered for the field. Built for the long haul.
Lighting & Power | Build & Fit | Safety & Warranty |
6,000 total lumens (4× 1,500 LED modules) | All-aluminum frame, textured powder coating | Flip-up plexiglass safety cover |
Runs on DeWalt or Milwaukee drill batteries | Fits 22 to 30 inch manholes (custom 30–40 inch available) | Reduces aerosol during jetting operations |
Marine-grade waterproof on/off switch | 30 lbs total weight | Reduces CCTV lens fogging in cold weather |
Sealed wiring harness with Deutsch connectors | Removable hose roller / cable guide | Integrated rope cleat for tiger-tail tie-off |
Ergonomic carry handle | Limited lifetime warranty on structure | |
1-year warranty on electronics |

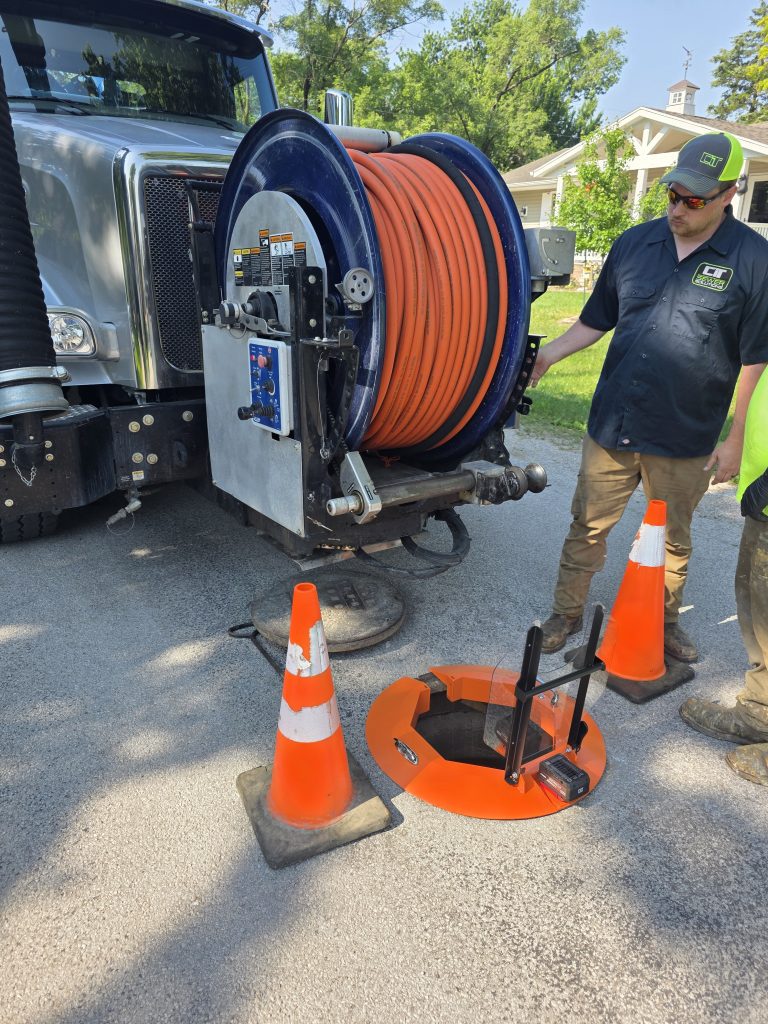

This is what active manhole safety equipment looks like on a working CCTV inspection: 6,000-lumen illumination, structural barrier, and integrated hose management deploying in a single setup.
What you see in the video is what your crew sees on every deployment. Predictable, repeatable, controlled.
OSHA requires employers to protect workers and the public from fall hazards around open access points. While not named specifically, illuminated manhole protectors support alignment with OSHA confined space safety requirements by addressing visibility, fall prevention, and confined space safety best practices on active jobsites.
Unlike cones or barricades, the Light Ring creates a secure, illuminated barrier directly over the manhole opening. This reduces fall risk, improves visibility at night or in confined spaces, and provides a more reliable safety solution during active inspections and maintenance.
The Light Ring can replace or significantly reduce the need for cones, temporary lighting, and makeshift barriers by combining multiple safety functions into one device. Many crews use it as their primary manhole protection system during active work.
An illuminated manhole protector is a safety device that combines high-visibility lighting with a physical barrier to help prevent falls and unauthorized access around open manholes. It improves visibility in low-light conditions while clearly marking the opening for both workers and the public.
Yes. Light Ring Inc. offers a rental program at $250 per week with up to $1,500 in rental fees applied toward purchase. Crews can prove the system on real jobs before committing capital, which makes it easier to justify the budget line item internally.
Yes, the Light Ring’s flip-up plexiglass safety cover helps reduce exposure to aerosols generated during jetting and cleaning operations. This added barrier supports safer working conditions while maintaining visibility for inspections.
The Light Ring is designed for municipal crews, utility departments, public works teams, and contractors performing sewer inspection, jetting, maintenance, or emergency response work. Many municipalities may also be eligible for safety grant funding to support investments in improved manhole safety equipment.
The Light Ring fits standard manholes ranging from 22 to 30 inches in diameter and is powered by DeWalt or Milwaukee battery platforms. This allows crews to deploy it quickly without the need for cords or external power sources.
Three funding paths to a safer crew on your next jobsite.
